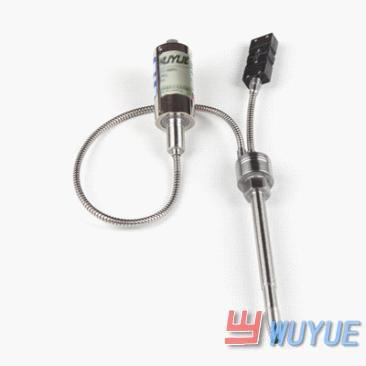

PT131B melt pressure transmitter

PT131B high temperature melt pressure transmitter

PT131B series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. The performance indicators reach world class level. Ideal substitute of expensive other world class like product.

Feature: High accuracy, Sealed with stainless steel, Easy installment, Good stability. Calibration on both zero and span, Amplified signal can be directly input in PLC.

PARAMETER:

• Pressure ranges: 0~7MPa~100MPa
• Accuracy:< ±1% FS; < ±0.5% FS
• Signal output:0~5V; 0~10V; 4-20mA
• Working voltage:10VDC(6--12VDC)
• Connector: common 5pin or 6pinconnector on request
• Standard threading: 1/2-20UNF, M14x1.5,M18*1.5 M22*1.5,G3/4 ;other versions on request
• Wuyue's melt pressure transmitter got CE Approved
• high temperature melt pressure transmitter
